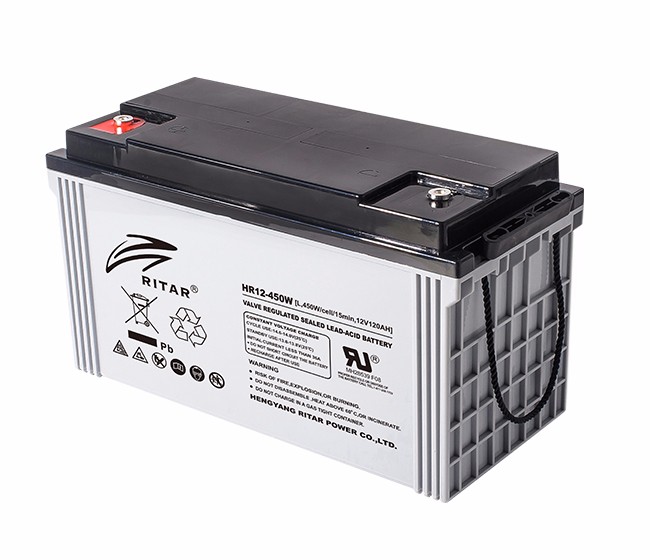

瑞达蓄电池HR12-450W
产品特性
HR系列是专门为高倍率放电设计的电池，运用良好的板栅合金和特殊的活性材料，使该系列电池在大电流放电时性能稳定它提供超过标准范围30%的输出功率。适用于高电流负载的UPS/EPS。
技术规格
| 电池型号 | 额定电压（V） | 额定容量（W） | 电池尺寸 | 端子选项 | |||
| 15min/1.67VPC | 长/mm | 宽/mm | 高/mm | 总高/mm | |||
| HR6-16W | 6 | 16 | 70 | 47 | 99 | 105 | F2 |
| HR6-18W | 6 | 18 | 70 | 47 | 99 | 105 | F2 |
| HR6-20W | 6 | 20 | 70 | 47 | 99 | 105 | F2 |
| HR6-22W | 6 | 22 | 70 | 47 | 99 | 105 | F2 |
| HR6-28W | 6 | 28 | 151 | 34 | 94 | 100 | F2 |
| HR6-32W | 6 | 32 | 151 | 34 | 94 | 100 | F2 |
| HR6-36W | 6 | 36 | 151 | 34 | 94 | 100 | F2 |
| HR12-16W | 12 | 16 | 90 | 70 | 101 | 107 | F2 |
| HR12-18W | 12 | 18 | 90 | 70 | 101 | 107 | F2 |
| HR12-20W | 12 | 20 | 90 | 70 | 101 | 107 | F2 |
| HR12-20BW | 12 | 20 | 151 | 50 | 95 | 101 | F2 |
| HR12-22BW | 12 | 22 | 151 | 50 | 95 | 101 | F2 |
| HR12-22W | 12 | 22 | 90 | 70 | 101 | 107 | F2 |
| HR12-28W | 12 | 28 | 151 | 65 | 94 | 100 | F2 |
| HR12-32W | 12 | 32 | 151 | 65 | 94 | 100 | F2 |
| HR12-36W | 12 | 36 | 151 | 65 | 94 | 100 | F2 |
| HR12-48W | 12 | 48 | 151 | 98 | 95 | 101 | F2 |
| HR12-50W | 12 | 50 | 181 | 77 | 167 | 167 | F13-BP(M5) |
| HR12-60W | 12 | 60 | 181 | 77 | 167 | 167 | F13-BP(M5) |
| HR12-70W | 12 | 70 | 181 | 77 | 167 | 167 | F13-BP(M5) |
| HR12-80W | 12 | 80 | 181 | 77 | 167 | 167 | F13-BP(M5) |
| HR12-88W | 12 | 88 | 181 | 77 | 167 | 167 | F13-BP(M5)/F18(M5) |
| HR12-96W | 12 | 96 | 166 | 178 | 125 | 125 | F13-BP(M5) |
| HR12-104W | 12 | 104 | 166 | 178 | 125 | 125 | F13-BP(M5) |
| HR12-125W | 12 | 125 | 195 | 130 | 155 | 168 | F11(M6) |
| HR12-150W | 12 | 150 | 198 | 166 | 169 | 169 | F11(M6) |
| HR12-200W | 12 | 200 | 229 | 138 | 211 | 216 | F11(M6) |
| HR12-200WA | 12 | 200 | 229 | 138 | 211 | 216 | F11(M6) |
| HR12-240W | 12 | 240 | 350 | 167 | 182 | 182 | F11(M6) |
| HR12-240WA | 12 | 240 | 350 | 167 | 182 | 182 | F11(M6) |
| HR12-280W | 12 | 280 | 260 | 169 | 211 | 216 | F11(M6) |
| HR12-280WA | 12 | 280 | 260 | 169 | 211 | 216 | F11(M6) |
| HR12-340W | 12 | 340 | 306.5 | 168.5 | 210 | 215 | F12(M8) |
| HR12-340W | 12 | 340 | 306.5 | 168.5 | 210 | 215 | F12(M8) |
| HR12-380W | 12 | 380 | 328 | 172 | 215 | 220 | F12(M8) |
| HR12-380WA | 12 | 380 | 328 | 172 | 215 | 220 | F12(M8) |
| HR12-380SW | 12 | 380 | 306.5 | 168.5 | 210 | 215 | F12(M8) |
| HR12-450W | 12 | 450 | 407 | 177 | 225 | 225 | F12(M8) |
| HR12-450WA | 12 | 450 | 407 | 177 | 225 | 225 | F12(M8) |
| HR12-520W | 12 | 520 | 340 | 173 | 280 | 287 | F12(M8) |
| HR12-520WA | 12 | 520 | 340 | 173 | 280 | 287 | F12(M8) |
| HR12-580W | 12 | 580 | 340 | 173 | 280 | 287 | F12(M8) |
| HR12-580WA | 12 | 580 | 340 | 173 | 280 | 287 | F12(M8) |
| HR12-570W | 12 | 570 | 483 | 170 | 241 | 241 | F12(M8) |
| HR12-570WA | 12 | 570 | 483 | 170 | 241 | 241 | F12(M8) |
| HR12-570SW | 12 | 570 | 340 | 173 | 280 | 287 | F12(M8) |
| HR12-620W | 12 | 620 | 532 | 207 | 214 | 219 | F10(M8) |
| HR12-620WA | 12 | 620 | 532 | 207 | 214 | 219 | F10(M8) |
| HR12-650W | 12 | 650 | 522 | 240 | 219 | 224 | F10(M8) |
| HR12-650WA | 12 | 650 | 522 | 240 | 219 | 224 | F10(M8) |
| HR12-690W | 12 | 690 | 522 | 240 | 219 | 224 | F10(M8) |
| HR12-690WA | 12 | 690 | 522 | 240 | 219 | 224 | F10(M8) |
| HR12-780W | 12 | 780 | 522 | 240 | 219 | 224 | F10(M8) |
| HR12-850W | 12 | 850 | 521 | 268 | 220 | 225 | F10(M8) |
| HR2-500W | 2 | 500 | 171 | 111 | 328 | 351 | F10(M8) |
| HR2-650W | 2 | 650 | 171 | 111 | 328 | 351 | F10(M8) |
| HR2-750W | 2 | 750 | 171 | 150 | 331 | 353 | F10(M8) |
| HR2-1000W | 2 | 1000 | 171 | 150 | 331 | 353 | F10(M8) |
| HR2-1250W | 2 | 1250 | 211 | 176 | 328 | 351 | F10(M8) |
| HR2-1500W | 2 | 1500 | 241 | 172 | 331 | 353 | F10(M8) |
| HR2-2000W | 2 | 2000 | 301 | 175 | 331 | 353 | F10(M8) |
| HR2-2500W | 2 | 2500 | 410 | 175 | 328 | 351 | F10(M8) |
| HR2-3000W | 2 | 3000 | 473 | 174 | 331 | 353 | F10(M8) |
| HR2-3200W | 2 | 3200 | 473 | 174 | 331 | 353 |
F10(M8) |
